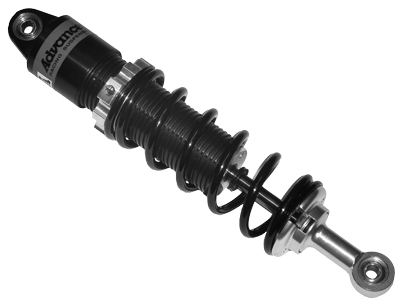

NEW -- 5500 Series ARS Shocks

The 5500 Series Quarter Midget Shock provides both high speed and low speed control unequaled in any other Quarter Midget shock design.
The zero rod pressure design does not change the ride weight while you are racing, unlike shocks with 25 psi or more pressure.
Weekly maintenance is eliminated by shaft seals that don’t leak and shock pressure is set when shock is assembled with no external schrader valve.

See Shock Table below




ARS Shafts, bushings and seals

Long or short shafts available

For other parts - just call us

NEW - Spring Assist Kit

Progressive spring stops
shock from bottoming out

Boomerang 2% Springs

Lighweight Springs

Springs are individually rated

Within 2% of the rated value

55# to 155#  in 5#  increments

165#, 175# and 185# also available

Black  (some Red)

Racer Net Pricing   $15.00 Each



Eibach Springs

Proprietary German Steel

75# - 155# in 5 # increments


Tanner Shock Rebuild Tool Kit

All the tools you need to work
on the shocks


Smoker Shocks

#3 and #5 damping, 2" or 3" travel

Hvy Dty Bottom Seal unit eliminates leaks

Threaded sleeves, rings and cones available separately

Order ends separately.

Upgrade Kits -- includes shaft, piston & seal


NEW - Tanner - Generation 3 Shocks

Maintenance Free design -

No external gas valve - the pressure is set internally

Titanium Nitride coated shafts for high wear resistance

BAND SEAL on piston instead of "O" ring

All parts interchange with the Generation 2 shocks





Tanner Accessories

"O" Ring Kits for Gen 1 or 2 shocks

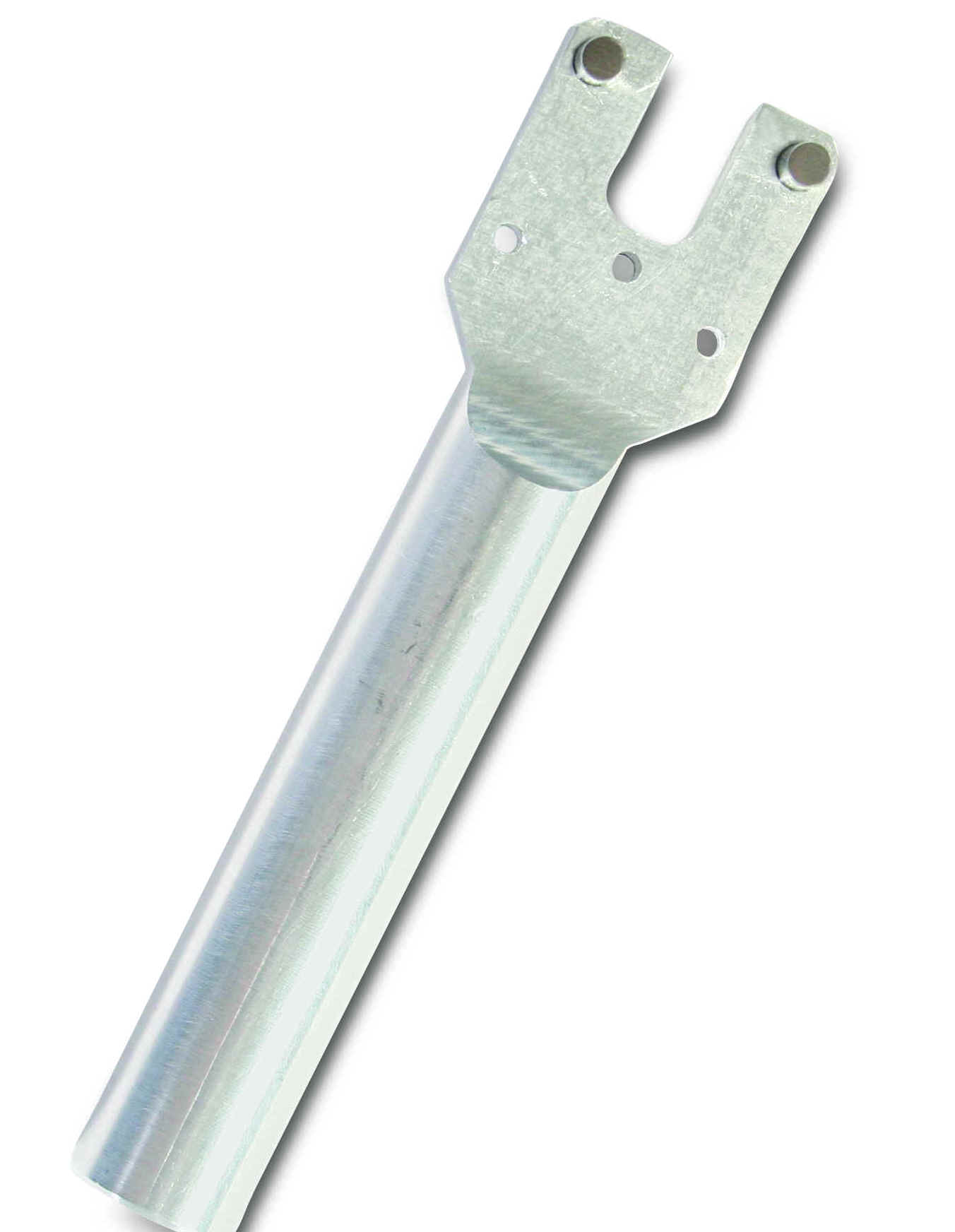

Universal Shock Wrench

Proprietary blend of shock oil

Pressure inlet extension for shock

Stainless shafts - GEN 1 short & long

Stainless shafts - GEN 2

Universal Shock Clamp Tool - available



ARS Shock Recommendation Table
(Unlike other shocks, the first number is the rebound, the second is the compression)

(325 lbs. – 340 lbs. Classes)
Asphalt Short Tracks
LEFT FRONT RIGHT FRONT
5504 5505/4
Shock recommendation for tracks with tight corners and poor grip.
LEFT REAR RIGHT REAR
5505/4 5505/4
Asphalt Fast Tracks
LEFT FRONT RIGHT FRONT
5504 5505
5505/4
(Recommended for tracks with a lot of grip to help free the chassis up)

LEFT REAR RIGHT REAR
5505/4 5505
5505/4
(Recommended for tracks that are rough, bumpy, or have poor grip. Great for traction)
Dirt Tracks
LEFT FRONT RIGHT FRONT
5504 5505/4

LEFT REAR RIGHT REAR
5505/4 5505/4



(250 lbs. – 275 lbs. Classes)
Asphalt Short Tracks
LEFT FRONT RIGHT FRONT
5503 5504/3
Shock recommendation for tracks with tight corners and poor grip.
LEFT REAR RIGHT REAR
5504/3 5504/3
Asphalt Fast Tracks
LEFT FRONT RIGHT FRONT
5503 5504
5504/3
(Recommended for tracks with a lot of grip to help free the chassis up)

LEFT REAR RIGHT REAR
5504/3 5504
5504/3
(Recommended for tracks that are rough, bumpy, or have poor grip. Great for traction)
Dirt Tracks
LEFT FRONT RIGHT FRONT
5503 5504/3

LEFT REAR RIGHT REAR
5504/3 5504/3



 NOTE: The Coil Kit must be ordered separately. It does not come with the shock.

Part # Description Price Qty
2134-3  ARS 5503 Shock only, specify long or short $175.00
2134-4  ARS 5504 Shock only, specify long or short $175.00
2134-5  ARS 5505 Shock only, specify long or short $175.00
2134-4/3  ARS 5504/3 Shock only, specify long or short $175.00
2134-5/4  ARS 5505/4 Shock only, specify long or short $175.00
2134-CKFS  ARS Coil Kit, Flat seat $25.00
2134-CKCS  ARS Coil Kit, Cone seat $25.00
2134-SS  ARS shaft seal only $5.50
2134-SB ARS shaft bushing only $4.50
2134-S ARS replacement shaft only, specify long or short $19.50
2134-SAK ARS Spring Assist Kit $16.00

Please enter the quantity in box above and click on "Order Here"

Boomerang 2% Springs
Standard 5" Length

Part # Description Price Racer Qty

2136-70  Boomerang Spring, 70# $17.50 $15.00
2136-75  Boomerang Spring, 75# $17.50 $15.00
2136-80  Boomerang Spring, 80# $17.50 $15.00
2136-85  Boomerang Spring, 85# $17.50 $15.00
2136-90  Boomerang Spring, 90# $17.50 $15.00
2136-95  Boomerang Spring, 95# $17.50 $15.00
2136-100  Boomerang Spring, 100# $17.50 $15.00
2136-105  Boomerang Spring, 105# $17.50 $15.00
2136-110  Boomerang Spring, 110# $17.50 $15.00
2136-115  Boomerang Spring, 115# $17.50 $15.00
2136-120  Boomerang Spring, 120# $17.50 $15.00
2136-125  Boomerang Spring, 125# $17.50 $15.00
2136-130  Boomerang Spring, 130# $17.50 $15.00
2136-135  Boomerang Spring, 135# $17.50 $15.00
2136-140  Boomerang Spring, 140# $17.50 $15.00
2136-145  Boomerang Spring, 145# $17.50 $15.00
2136-150  Boomerang Spring, 150# $17.50 $15.00
2136-155  Boomerang Spring, 155# $17.50 $15.00





Please enter the quantity in box above and click on "Order Here"

Tanner Springs - Standard 5"

Part # Description Price Qty
2138-75  75# Spring -- Orange $24.95
2138-85  85# Spring $24.95
2138-95  95# Spring $24.95
2138-105  105# Spring $24.95
2138-115  115# Spring $24.95
2138-125  125# Spring $24.95
2138-135  135# Spring $24.95
2138-145  145# Spring $24.95
2138-155  155# Spring $24.95
2138-165  165# Spring $24.95

Please enter the quantity in box above and click on "Order Here"


EIBACH SPRINGS - Standard 5"

Part # Description Price Qty
2139-75  Eibach Spring, 75# $25.00
2139-80  Eibach Spring, 80# $25.00
2139-85  Eibach Spring, 85# $25.00
2139-90  Eibach Spring, 90# $25.00
2139-95  Eibach Spring, 95# $25.00
2139-100  Eibach Spring, 100# $25.00
2139-105  Eibach Spring, 105# $25.00
2139-110  Eibach Spring, 110# $25.00
2139-115  Eibach Spring, 115# $25.00
2139-120  Eibach Spring, 120# $25.00
2139-125  Eibach Spring, 125# $25.00
2139-130  Eibach Spring, 130# $25.00
2139-135  Eibach Spring, 135# $25.00
2139-140  Eibach Spring, 140# $25.00
2139-145  Eibach Spring, 145# $25.00
2139-150  Eibach Spring, 150# $25.00
    $25.00
    $25.00

Please enter the quantity in box above and click on "Order Here"


Shocks

Part # Description Price Qty
2130-3S
2130-5S
2130-3L
2130-5L
2131-3S
2131-5S
2131-3L
2131-5L
2132-AS
2132-AL
2132-SL
2132-SS
2133-3S  Smoker Hvy Dty shock body, #3, 2 inch travel $65.00
2133-5S  Smoker Hvy Dty shock body, #5, 2 inch travel $65.00
2133-3L  Smoker Hvy Dty shock body, #3, 3 inch travel $65.00
2133-5L  Smoker Hvy Dty shock body, #5, 3 inch travel $65.00
2133-RC  Smoker threaded sleeve, ring and bottom cone $19.50
2133-K3S  Smoker rebuild kit w/#3 piston, 2 inch travel $29.50
2133-K5S  Smoker rebuild kit w/#5 piston, 2 inch travel $29.50
2133-K3L  Smoker rebuild kit w/#3 piston, 3 inch travel $29.50
2133-K5L  Smoker rebuild kit w/#5 piston, 3 inch travel $29.50
2137-W  Tanner Universal Shock Wrench $22.50
2137-C  Tanner Shock Clamp - magnetic insert $27.50
2137-K  Tanner Shock Rebuild Tool Kit $79.00
2137-O Tanner Shock Oil, One Pint $9.50
2137-I Tanner Inflation Adapter $12.50
2137-R1 Tanner - O Ring Kit , GEN 1 $9.95
2135-SS Stainless shaft, Pk of 2, GEN 1, short $47.00
2135-SL Stainless shaft, Pk of 2, GEN 1, long $47.00
2137-G2/2 Stainless shaft, Pk of 2, GEN 2 or 3 $47.00
2137-R2 Tanner - O Ring Kit, GEN 2 $9.95
2137-G2/ Tanner Generation 2 Shock, Specify 2-6 $125.00
2137-G2/S Tanner Generation 2 Shock, Split Valve, specify $135.00
2137-G3/ Tanner Generation 3 Shock, 50-50, specify 2-6 $149.00
2137-G3/S Tanner Generation 3 Shock, Split Valve, specify $159.00
2137-ES Shock, bottom rod end, short $4.50
2138-SP
2138-O Hunter O Ring Kit (uses GEN 1 Kit - 2137-R1) $9.95
2138-C Hunter Shock Clamp $49.50

Please enter the quantities in boxes above and click on "Order Here"
