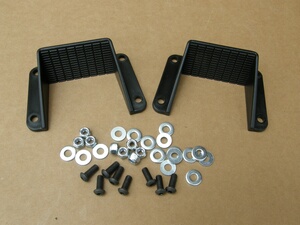

NEW
- Aluminum Heel Stops
 |
Lightweight
and strong |
 |
Simply
bolt to the belly pan |
 |
Hardware
supplied |
 |
Sold
individually |
QMA
only requires a Brake Pedal Heel stop.
|
 |
|

|

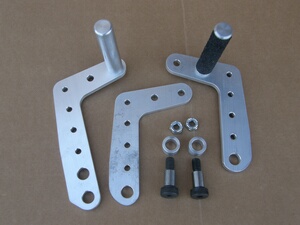

LIGHTWEIGHT
ALUMINUM PEDALS
 |
NC
Machined Pedal Plates |
 | Adjustable
Foot Rest |
 | Allows
for extension over the steering rods |
 |
Comes
with shoulder bolt and mounting spacer |
 |
The shoulder bolt
mounts solid to the frame while allowing the pedal to move freely. |

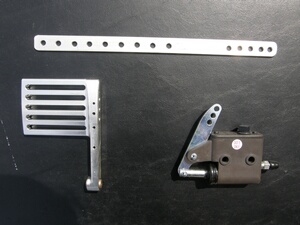

Pedal
Mount Plates
 |
Adjustable
plates bolt to tabs on frame |
|
|
Throttle
Cable & Ends
 |
1/16" x
72" Throttle Cable |
 |
Cable
Stop is Hex
shaped |
 |
Wire Swivel is
1/4" round so it will swivel in a 1/4" hole on a pedal. |
|

|
|
|

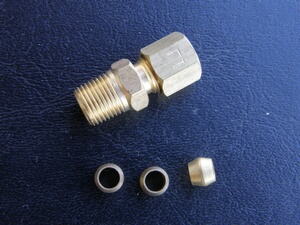

3/16"
Fittings
 |
Fits 3/16"
Nylon Line |
 |
The Straight
fitting is used for both cable and hydraulic applications. It is also
used to hold the vent line on gas tanks. |
 |
The Angle
fitting is used for Hydraulic applications only. |
|
|
