NEW - Tire Mounting Tool for 1 piece wheels
Temporarily - Out of Stock


All the pieces - mount base on a bench
or put it in a vice to hold it


To dismount Tire -- Rotate handle about post
Note how one side of the tire is down in the
center of the wheel


To mount tire - rotate handle with
roller resting on the rim of the wheel.
Note again how one side of the tire is
down in the center of the wheel

NOTE:
The Tire Tool must be firmly mounted
The top hex nut must be tightened so that the mounting shaft is stable and won't bend.
The clamp collar must tightened sucurely
Warm the tire up to make things easy

Follow these steps to change tires

  1. Break the bead using a Bead Breaker.
    The Bead Breaker Tool is listed below.

  2. To Dismount Tire:
    Mount the wheel on the Tire Tool with the narrow side of the rim up. Hold one side of the tire down in the middle of the wheel with one hand while you use the flattened end of the handle to pry the tire over the rim on the opposite side. Rotate handle about center post to remove tire. Finish by hand.

  3. To Mount the Tire:
    Put one side of rim in the new tire by hand with the narrow side of the rim up. Mount wheel on the Tire Tool and attach the handle as shown with the roller riding on the rim. Tighten the collar to keep the roller on the rim. Push one side of the tire down into the middle of the wheel and rotate the handle to roll the other side of the tire on.

  4. Put tire and wheel assembly inside of the tire ring and inflate until tire is seated on rim.
    NOTE: The tire ring is a safety feature because it may take up to 100# to seat the tire properly on the rim.



MyChron 4 Basic Kit Includes:

Built-in data logger
RPM pick-up
Lap Timer
Head temperature or
Exhaust temperature or
Water temperature sensor.
Beacon is an extra cost item


Only -- $329.00


Software with cable -- available
View results on your laptop at the track

NEW - MyChron Data Key

Plugs into MyChron 4 for racing

After racing, plug into your computer to download data


MyChron Brackets

Clamp to any frame tube

5/8", 3/4" and 7/8" available

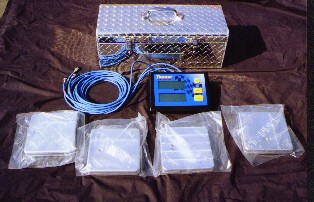

Tanner - anodized blue



10" Tanner Scales

NC Machined Pads

All new digital readout

Diamond case shown not available

Comes with case for electronics

Special Price -- $950.00

8" Scales no longer available
Designed to use Tanner Scales shown above but other scales will work.
Sit car on sliding plates and measure ride heights directly.
Move sliding plates to center as shown and car rests on scales.
Table snaps apart for easy storage
Adjustable legs for levelling
Shipping charges -- $125.00

JFR Aluminum Setup Table



12" Scales shown are the same height as the sliding plates. 8" or 10" scales fit under plates.

Alignment Bars

5/8" Front End Bars

1 1/4" Rear End Bars

Bright Finish Aluminum

Chrome Plated rods



Tire Bead Breaker

Heavy Duty Tire Change

Bead Breaker makes it easy to get the
tires off the rims. It sells because it works!

New angled foot slips easily under the wheel rim.

 Angled handle provides better leverage to break the bead on the tire.

Well braced to prevent bending.

Powder Coated


Heavy Duty Tie Rod Straightener

3/4" Tube Handles are easy to grip while straightening the rods. 4130 Alloy tube for high strength.

1/2" or 5/8" ends available

One Angled Head and one Straight Head lets you get in at any angle to bend the rod.

Powder Coated

Robic Stopwatches

Model 505 has a memory of 5 laps.

Back to Back laps! Time every lap.

Economical and easy to use.

Model 545 has a 30 lap memory


FASTACH - Tachometer

Stores the highest RPM on the track

Reading remains in memory until deleted

Economical and easy to use

Determine the correct gear ratio

Works best on Honda Motors

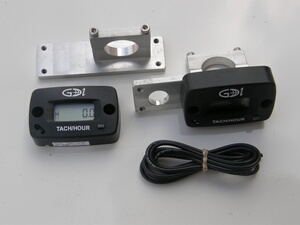

FASTACH  Mounting Bracket

FasTach bolts directly to the bracket

Bracket mounts to a cage tube

3/4" and 7/8" available



Tire Safety Ring

Use to inflate tires with safety

Simple adjustment - fits any tire

Powder Coated Red

Ride Hite Gauge

Quickly measures the ride height at each corner of the car.

Just slip it under the frame and push in until slider bottoms out. Remove and read the ride height directly.

Red Slider

Price is for one gauge only.

Caster Camber Gauge

Attach directly to the 5/8" spindle bolt

Measures both Caster and Camber

MINI - Temperature Gun
with Laser


Check Tire temperatures for even slip

Check Head temperature for carburetor settings

Check Track temperature

Sale Priced at $49.00



Tanner 2 1/2" Air Gauges - 30#


High quality gauge with pressure release

Glo in the Dark gauge so you can read the pressure at night is also available

2" and 2 1/2" replacement glass available

Tire Hardness Gauge

Check the Hardness of your tires for comparison
                  50 shore --- SOFT
                  70 shore --- HARD

PULL STRAP


Wrap around tire and pull to start

(We should be getting longer ones in the near future - keep checking in.)

NEW - Tire Scraper

Pull Back Design makes it
easy to use.



Part # Description Price Racer Qty
2201-1/2  Tie Rod Straightener, 1/2 inch ends $55.00 $49.50
2201-5/8  Tie Rod Straightener, 5/8 inch ends $55.00 $49.50
2202-F  Front End Alignment Tool $69.00 $65.00
2202-R  Rear End Alignment Tool $69.00 $65.00
2204-30/2 1/2  Tanner Air Gauge w/release valve, 30#, 2 1/2" size $45.00 $39.50
2204-30G  Tanner Glo in the Dark Air Gauge, 30#, 2 1/2" size $45.00 $39.50
2205-5  Robic 505 Stopwatch, 5 lap memory $29.50 $27.50
2205-30  Robic 545 Stopwatch, 30 lap memory $39.50 $37.50
2203  Tire Bead Breaker with angled handle $69.00 $59.00
2207-P  Tire Safety Ring - Powder Coated RED $55.00 $49.50
2203-R   $79.00 $75.00
2202-C Caster - Camber Gauge w/adapter, in case $149.50 $139.50
2209-8
2209-10 Tanner 10" Digital Scales with electronics case $995.00 $950.00
2204-TL Temperature Gun with Laser $69.00 $49.50
2208-T JFR Aluminum Setup Table $675.00 $650.00
2200-4 MyChron 4 - specify head temp or exhaust temp in
   comments section at the end of the order form		 $429.00 $329.00
2200-D Data Key with cable - for Mychron 4 $79.00 $75.00
2200-4B MyChron Beacon $49.50 $45.00
2200-H MyChron Bracket, 7/8 $27.50 $25.00
2200-H3 MyChron Bracket, 3/4 $27.50 $25.00
2200-H5 MyChron Bracket, 5/8  $27.50 $25.00
2206-B6 FASTACH Mounting Bracket, 3/4 inch $19.50 $17.00
2206-B7 FASTACH Mounting Bracket, 7/8 inch $19.50 $17.00
2204-H Tire Hardness Gauge (Durometer) $69.00 $65.00
2206 FasTach, small tachometer for Honda $89.00 $79.00
2208 Ride Hite Gauge, each $19.50 $15.00
2204-30/2.5 Tanner Air Gauge, 2 1/2" size $45.00 $39.50
2204-G2 Air Gauge replacement glass, 2" $4.00
2204-G 2 1/2 Air Gauge replacement glass, 2 1/2" $4.00
2207-TS NEW - Tire Scraper $19.95
2203-P

Please enter the quantity in box above and click on "Order Here"
