Top left shows
the left hand carrier with the shock mount on the front and down below
the axle. |
|
Top right shows
the right hand carrier with the shock mount on the back and down below
the axle. |
|

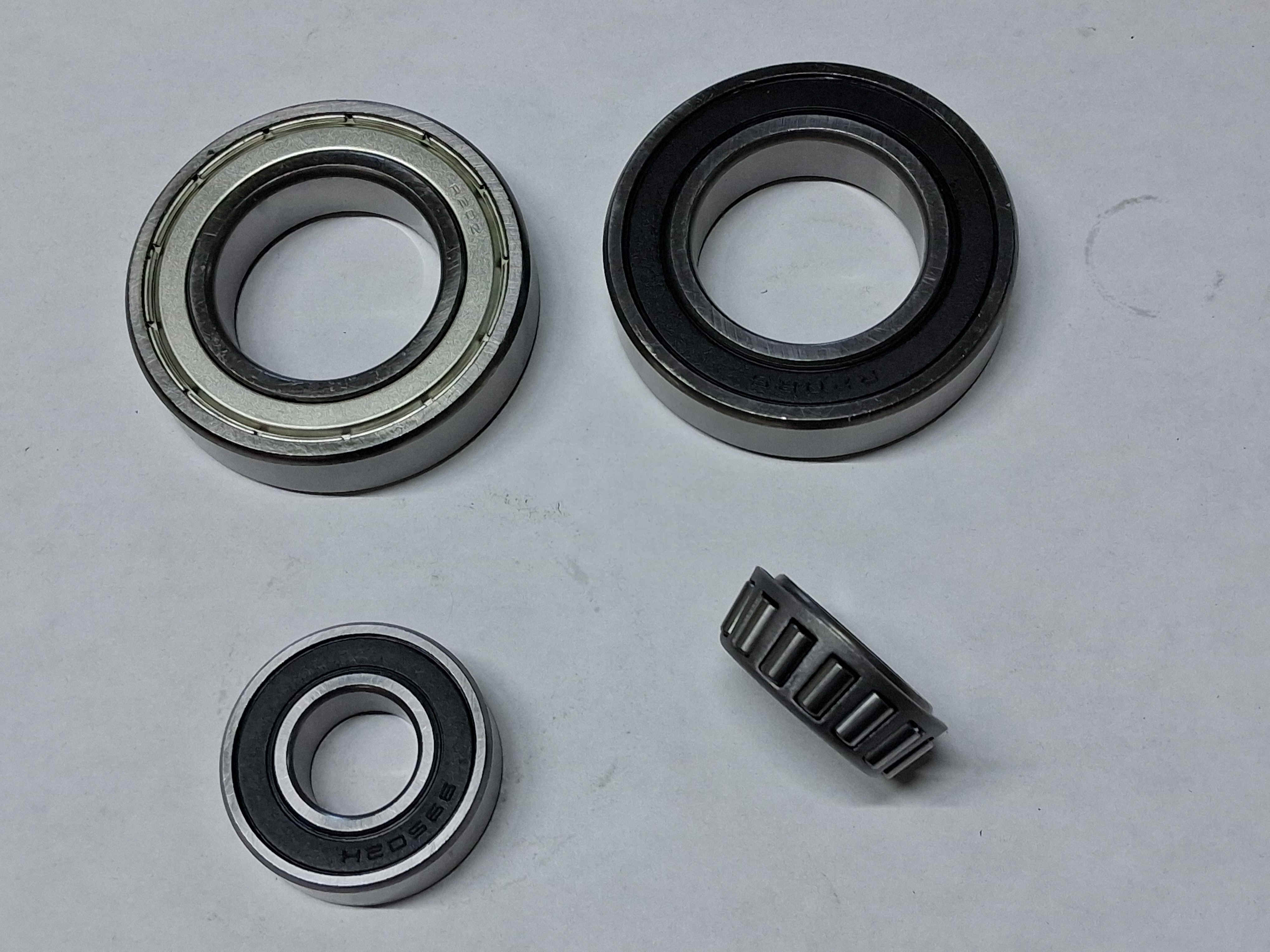

The bearings are
mounted in rings, one on each side of the plate. The rings are of
equal width and the bearings are separated by the width of the plate
for stability. |
|
The radius arms
mount on the top and bottom of the plate and are 1" to the front of
the axle. |
