A-Main Air Filter Adapter

Flex Foam Filter and Adapter

High Flow Air Filter

Fits Air Filter Adapter shown

Straight Filter -- white only

Adapter fits on Honda motor

Order Adapter separate

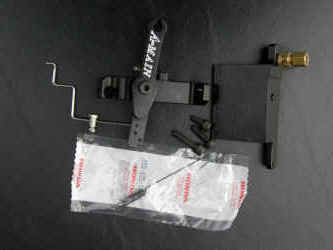

A-Main Linkage Kit

160 Linkage shown has a heat deflector
over the head

120 Linkage does not have the deflector

Linkage rod supplied but must be fitted

Bracket has place for throttle return spring

Throttle spring included

Throttle stop adjust screw

Teflon coated  cable included


JFR Lightweight Honda Linkage Kits

Simple Lightweight design

Available for 120 or 160 motors

Replaces Stock Linkage

One bolt installation

Uses standard throttle cable

Uses standard Honda linkage rod

(Order cable and rod separately)

Tanner Linkage Kit

Fits 120 or 160 motors

Easy setup instructions

Stainless cable included

Offset cam adjust for throttle stop

Linkage rod supplied but must be fitted

Hunter Linkage Kit

Back in Stock again

Pivot arm with bearing instead of bushing

Teflon coated throttle cable included

Fits 120 or 160 motors

NEW - Tier 3 120 Honda Flywheel

Required after 1/1/09

Includes standard flywheel key

Tier 3 - 120 & 160 Honda Motors

Shipped in the box. Just like the picture. You make the changes.

Dyno Tuned Motors -- ADD $200.00
     (See bottom of page to order)

 Honda Engine Parts

We have all the engine parts you need for the 120 engine in stock. .

We also have all the 160 parts including the 140 valve springs and 80 jets.





Part # Description Price Racer Qty
2500-120  Honda 120 Motor, complete in the box $475.00 $440.00
2500-160  Honda 160 Motor, complete in the box $495.00 $465.00

Please enter the quantity in box above and click on "Order Here"


120 Honda Motor Parts

Part # Description Price Racer Qty
2501-K  Gasket Kit, complete 22.85 19.42
2501-H  Head Gasket 9.75 8.29
2501-V  Valve Cover Gasket 3.20 2.72
2501-S  Side Cover Gasket 5.60 4.75
2501-G  Gear Box Cover Gasket 6.75 5.74
2501-E  Exhaust Gasket 4.50 3.83
2501-CR  Carburetor Gasket, round hole 1.20 1.00
2501-CD  Carburetor Gasket, D hole 1.75  1.49
2502-T3  120 Tier 3 Piston, Std size 26.75 22.74
2503-T3  120 Tier 3 Rings, Std size 20.00 17.00
2503 120 Rings, older Tier 2  20.00 17.00
2505-VI  Intake Valve 16.50 14.03
2505-VE  Exhaust Valve 21.00 17.85
2505-S  Valve Spring, each 3.25 2.75
2505-S-10K  Valve Spring, Pk of 10 ($2.50 ea)   25.00
2506-62  Jet, #62 6.00 5.00
2506-65  Jet #65 6.00 5.00
2507  Spark Plug Cap 15.00 12.75
2507-S Spark Plug, each 2.95 2.50
2508-R120 120 Linkage Rod, Gold 2.95 2.50
2512 120 Tier 3 Flywheel 94.00 82.50
2501-GB Gearbox-Block Gasket 5.60 4.75
 2505-P 120 Push rod   4.61
 2504 120 Standard Rod 59.00 50.00

Please enter the quantity in box above and click on "Order Here"



160 Honda Motor Parts

Part # Description List Racer Qty
2521-K  Gasket Kit 160,complete 25.00 $21.25
2521-H  Head Gasket, 160,each 12.50 $10.63
2523  Ring Set, Standard 160 24.00 $20.40
2525-S  Valve Spring, 160, each 3.25 $2.75
2516-80  Jet, #80 6.00 $5.10
2525-VI 160 Intake Valve 16.80 15.00
2525-VE 160 Exhaust Valve 16.80 15.00
2508-R160 160 Linkage Rod, Silver 2.95 2.95
2522-T3 160 Tier 3 Piston 39.50 33.58
2523-T3 160 Tier 3 Rings 24.00 20.40

Please enter the quantity in box above and click on "Order Here"



Part # Description Price Racer Qty
2508-120  JFR Honda Linkage Kit for 120 $45.00 $39.50
2508-160  JFR Honda Linkage Kit for 160 $45.00 $39.50
2508-H Hunter Throttle Linkage Kit
for 120 or 160, ball bearing design
comes with teflon coated cable
$57.50 $55.00

2508-T  Tanner Linkage Kit, 120 or 160
 w/stainless steel cable
$54.25 $49.50
2508-A120  A-Main LInkage Kit, 120
 w/teflon coated cable
$65.95 $59.95
2508-A160  A-Main LInkage Kit, 160
 w/teflon coated cable
$68.95 $62.95
2508-CS Stainless steel cable for Tanner, A-Main or Hunter Linkage kits $5.95
2508-CT Teflon coated cable for Tanner,
A-Main or Hunter Linkage kits
$6.50
2243-A A-Main Air Filter Adapter -
anodized black
$20.95 $19.95
2243 Air Filter Adapter - plain aluminum $19.50 $17.50
2244 Foam Filter, straight  $7.50 $6.00

Please enter the quantity in box above and click on "Order Here"



      Honda Motor Package

         120 Honda Motor ------------------ $440.00
         Clamp On Motor Gear Hub ------     19.50
         3 Hole Motor Gear -----------------     19.50
         Split Axle Gear ----------------------     19.50
         Tailpipe, specify class ------------     45.00
         #65 Jet, (#80 for 160 Class) ------       5.25
         One Quart of Power Plus --------      12.00
                    Total List Price                    $560.75

  120 Honda Package --------  $525.00
  160 Honda Package --------  $550.00

      Deluxe Linkage Kit -----  $  35.00



            *SET UP & DYNO TUNE MOTOR
Break in motor on Dyno prior to disassembly

       *Remove muffler, air cleaner, gas tank, throttle
         and pull start.
       *Remove internal/external governor , plug hole
       *Torque connecting rod bolts to custom spec.
       *Install side cover and torque bolts to custom
         specification.
       *Rotate gearbox 90 degrees.
       *Lap intake/exhaust valves for proper seal.
       *Install cylinder head and torque bolts to custom
         specification.
       *Set valve clearances to custom specifications.
       *Remove choke assembly and plug hole.
       *Replace carburetor main jet per Honda rulebook
       *Adjust  coil position per custom specification
       *Modify starter cup per Honda rulebook.
       *Remove on/off switch
Run motor on Dyno to check settings

                 Add $200.00

         Honda Rebuild Kits

   Rebuild your own Honda and Save!!

           Flex Hone for 120 Honda --------  $35.00
           Honda Ring Set --------------------    20.00
           Valve Springs, set of two --------     5.90
           Head Gasket ------------------------      8.15
           Valve Cover Gasket --------------      3.20
           One Quart Power Plus ------------   12.00
                       Total List Price                   $84.25





     120 Honda Rebuild Kit ----  $75.00

           With Flex Hone for 160 Honda, 160 ring set
            160 Head Gasket, springs and oil --

      160 Honda Rebuild Kit ----  $80.00





Part # Description Price Qty
2500-120P  120 Honda Motor package $525.00
2500-160P  160 Honda Motor package $550.00
2500-Dyno  Dyno Tune 120 or 160 Honda motor $200.00
2500-120R  120 Honda Rebuild Kit $75.00
2500-160R  160 Honda Rebuild Kit $80.00
2508-P  120 Honda Linkage Kit, add to package $35.00
2528-P  160 Honda Linkage Kit, add to package $35.00

Please enter the quantity in box above and click on "Order Here"
