Wheels & Hubs - Click to select



Van K One Piece Wheels



Front Hubs, Rear Hubs


Rim Half's, "O" Rings, etc



Zero-Error Front Hubs
 with outside shields

Ball Bearings        Taper Bearings

  • 5/8 ball bearings have no inside shields

  • Ball bearings & taper bearings are removable

  • can use light oil for free spinning

Splined Drive Hubs

  • 1/4" or 5/16" bolts (std bolts)
  • 5/16" available with self starting
          bolt kit.

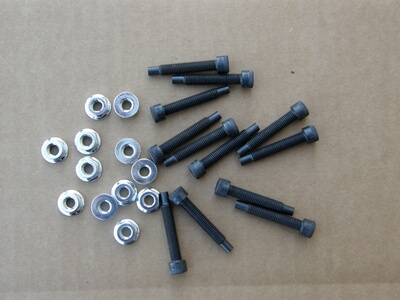

Self Starting Wheel bolts - 1/4"

  • Bolts have end lead to center nut before starting

  • 1/4-28  x 1 1/4" Socket Cap bolts w/flange nuts

  • Available in a 12 pk for all 4 wheels

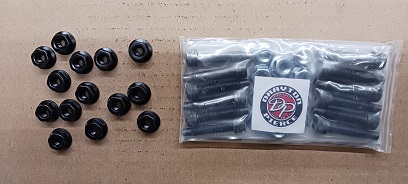

Self Starting Wheel bolts - 5/16"
1/4-28 Flange Nuts, 1/2" drive


  • -- 5/16-24 fine thread Self Starting Bolt Kit
        (a lot of hubs are 5/16-18 so check first)

  • -- 1/4-28 Flange Nuts with 1/2" drive head

  •    (if you have 5/16 bolts on the same car
        these would work great - same socket)

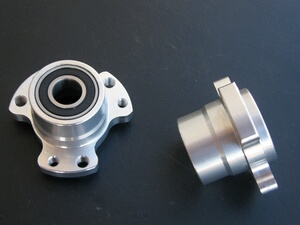

Boomerang Lightweight Hubs

  • Front hub with Standard 5/8" bearings

  • 1 1/4" Clamp On Drive Hub

  • Use 1/4" or 5/16" Hub bolts

  • All hubs come with bolts and flange nuts

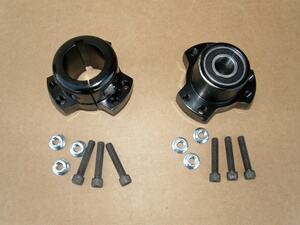

NEW - Black Hubs

  • Front hub with Standard 5/8" bearings

  • 1 1/4" Clamp On Drive Hub

  • Use 1/4" or 5/16" Hub bolts

  • All hubs come with bolts and flange nuts




Boomerang Lightweight
Standard Taper Bearing Hub

  • Standard width front hub for steel spindles

  • Taper bearings take the side load and roll free through the corners.

  • Wide spacing for better side load on bearings.

  • Order with or without bearings


Boomerang Narrow Front Hubs

  • This is a narrow hub designed to fit the Fiser spindle but it will work on any spindle.

  • Uses either 1/4" or 5/16" bolts

  • Ball bearing or Taper bearing hub available

Fiser Front Hubs

  • Available with taper bearings only

  • The 5/8 bearings have a metric OD and are available separately  (not the same as above)

  • The taper bearings are also available separately






Splined Drive Hubs

  • Splined hubs fit all splined axles

  • Fiser Hub has 6 bolt pattern, 1/4" bolts

  • 3 bolt Splined hub with 1/4" bolts  & nuts

  • 3 bolt Splined hub with 5/16" bolts & nuts


LEFT REAR BEARING HUBS

  •  Lightweight  Single 1 1/4" bearing hub -
    1" wide bearing surface, 3- 1/4" studs

  • DUAL bearing hub has 2 - 1 1/4"  x 1/2" bearings stacked together.  (1/4" studs for mounting rims)








SMOKER Ratcheting Hub

  • NOW - Smaller & Lighter

  • Locks up in the corner and unlocks in the straight.
          (unlock in the straight frees the car up)

  • Wheel mounts on  3 - 1/4" studs.

  • Comes with 1/4" Key or Splined Key

  • Can also be ordered with a key for a Titanium Axle

  • Keys available separately


Part # Description Price Qty
2146  Standard Front Bearing Hub, 3 bolt, ball bearings $22.50
2146-T  Standard Taper Bearing Hub, 3 bolt w/bearings $39.50
2146-TH  Taper Bearing Hub only, std width $22.50
2146-TB  Taper Bearing only - fit all taper bearing hubs $8.95
2146-N  Narrow Front Bearing Hub, 3 bolt, ball bearings $22.50
2146-NT  Narrow Front Bearing Hub, 3 bolt, taper bearings $39.50
2146-NTH  Taper Bearing Hub only, narrow $22.50
2147  Lightweight 1 1/4 Drive Hub, clamp on $22.50
2146-BK  Standard Front Bearing Hub - BLACK $19.50
2147-BK  Standard 1 1/4 Drive Hub, clamp on - BLACK $19.50
2155  5/8 Wheel Bearing, 1.375 OD, standard $2.50
2155-M  5/8 Wheel Bearing, 1.378 OD, for older Fiser Front Hubs $2.50
2149-TH  Fiser Taper Bearing Hub only $35.00
2149-T  Fiser Taper Bearing Hub, 6 bolt, with bearings $55.00
2150-6  Fiser Splined Drive hub, 6 bolt $22.50
2150-1/4 Splined Drive Hub, 3 bolt, 1/4 bolts & nuts $27.50
2150-5/16 Splined Drive Hub, 3 bolt, 5/16 bolts $27.50
2153-SSK Self Starting Wheel bolt kit - 12 bolts w/nuts, 1/4-28 $22.50
2153-SSK5 Self Starting Wheel bolt kit, 12 bolts w/nuts, 5/16-24 $24.50
2152-F2 1/4 - 28 Flange Nuts with 1/2" drive head $.40
2146-ZB NEW - Zero Error Ball Bearing Hub with shields $29.50
2146-ZTS NEW - Zero Error Taper Bearing Hub with shields $49.50
2150B-1/4 Splined Drive Hub, 1/4 bolts, Black. $29.50
2150B-5/16S Splined Drive Hub, 5/16 Self Starting bolts, Black $39.50

Please enter the quantity in box above and click on "Order Here"


Part # Description Price Qty
2151-SRS Smoker Ratcheting Hub with splined key $215.00
2151-SR4 Smoker Ratcheting Hub with 1/4 key $215.00
2151-KS Splined key for Ratchet Hub, each $7.50
2151-K4 1/4 key for Ratchet Hub, each $7.50


2151-6 Left Rear Bearing Hub, 6 bolt, Fiser $49.50
2151-3 Left Rear Bearing Hub, 2 - 1 1/4 x 1/2 bearings, 3 bolt $56.50
2151-S Left Rear Bearing Hub, 1 - 1 1/4 x 1" bearing, 3 bolt, lightweight $49.50

Please enter the quantity in box above and click on "Order Here"
