NEW
12" Angled Headrest
-
Designed for frames
without brace tubes
-
17" wide plate
attaches to 7/8" cage tubes
-
We will match the
angle of your cage tubes.
-
Headrest attaches firmly
with 4 bolts
-
Uses 7/8" mounting
clips
|
Front side of Head Rest with Foam
|

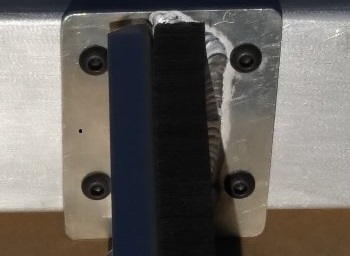

Attaches firmly with 4 bolts to backplate
|
|

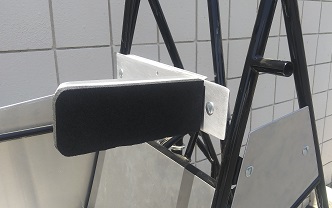

8" Head Rest - mounted close to side
- Shows Head Rest mounted close to the left side for drivers who lean
over while driving. This gives better control
of the car when driving on an asphalt or concrete track.
|

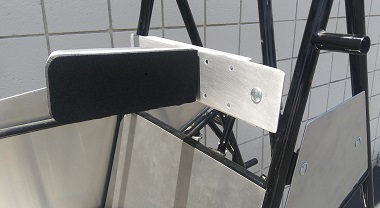

8" Head Rest - mounted close to center
- Shows Head Rest mounted near the center of the car for drivers
sitting up straight. This gives more weight transfer to the outside
tires when driving on a dirt track.
|

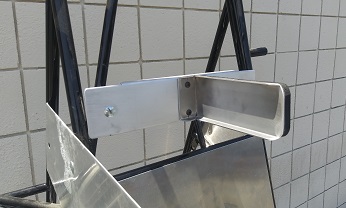

8" Head Rest - back side
- The Head Rest is channeled to provide extra strength while
maintaining a lightweight design.
- Fastens with 2 - 1/4" Pan head bolts.
- Adjustable sideways in 2" steps.
|
|

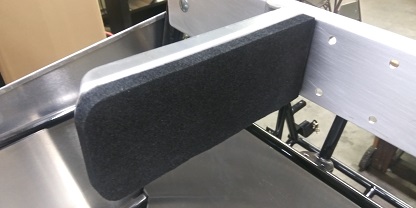

Head Rest with 1/2" Closed Cell Neoprene Foam
Rubber
|

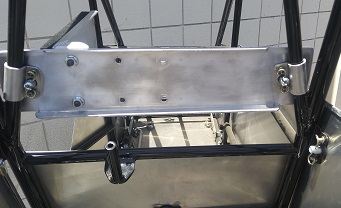

Head Rest - Mounting Plate
- The Head Rest Mounting Plate is also channeled to provide
extra strength while maintaining a lightweight design.
- Head Rest is attached to the 5/8" support tubes with 2 -
5/8" custom mounting clips.
|

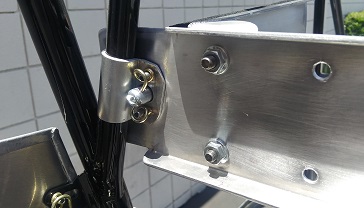

Head Rest - Mounting Clip
- Shows a close up of the Custom Clip used to attach the Head Rest
Mounting Plate
- Clip clamps securely to the 5/8" support tube and uses a
standard 7/16 Oval Head Dzus
|
|

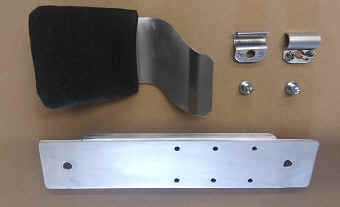

Mounting Plate with 5/8" Clips
Kirkey Head Rest also shown
|

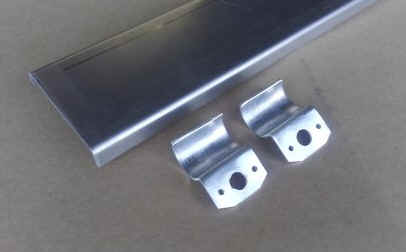

3"x .090" Aluminum Channel
shown with 7/8" clips
Will attach to 7/8" cage tubes
|

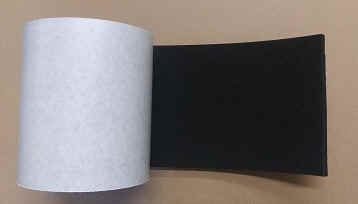

1/2" Thick Foam with adhesive backing
|
|
SPECIAL FEATURES
- Designed for the younger driver that is just starting out and needs
extra head support.
- Simple straight forward design.
- 8" Head Rest gives good helmet contact
without blocking the Driver's view to the right.
- 8" Head Rest attaches to 5/8" frame support tubes using the custom
clips.
- Design includes clearance to allow the head rest to be moved up
higher on the support tubes.
- 12" Head Rest attaches to 7/8" cage tubes
- Head Rest adjusts easily sideways in 2" steps.
- 1/2" Closed Cell Foam w/adhesive backing.
- .090" thick aluminum for light weight
- Channeled to provide extra strength.
- Head Rest parts can be ordered separate.
NOTE
- Head Rest Assy comes without the clip holes drilled in the back
plate so you can fit it exactly to
your own frame support tubes
|
|
