NOTE: From the outside these bearings
look like standard steel bearings --
Its what's inside that is different!!!



NEW - Hybrid Ceramic Bearings

Standard Steel outer and inner ring

Ceramic balls on steel races give much greater wear with little drag

Steel Retainers

High Quality Silicon Nitride Ceramic balls

Ceramic balls are installed in California

Shimano Grease is used on installation

Complete set includes 4 - front 5/8 bearings
and 4 - rear 1 1/4" bearing

Compare to 1 1/4" ceramic bearings selling on the market for $95.00 each

  Advantages of Ceramic balls over Steel

Ceramic balls are much smoother than steel balls
Ceramic balls are much harder than steel balls
(over 100% harder)
Thermal expansion is 25% that of a steel ball
resulting in much less heat under load

All of these factors result in much less friction for a Ceramic ball than a steel one

Ceramic Bearing Maintenance

It is recommended that you maintain the bearings after 6 months of racing on them.

Remove shields carefully and clean out grease

Wash out race & balls and let air dry.

Refill with either Shimano Grease or White Lithium Grease - only 20% full

Reseal and you are ready to go

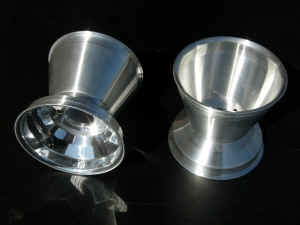

Van K Wheels -
One piece polished wheels


NEW - 6" x 6", 4" inner cone
This is a machined wheel which means it will run super true -- Only $35.00

Check out all the other sizes available


Van-K Rim Halves

5" and 6 " Rim Halves

Polished

1/4" bolt hole size

Only some sizes available - call


WHEEL KITS

Tubeless kit w/"O" ring and valve stem

1/4" buttonhead rim bolt kits

1/4" socket cap wheel bolt kit

NEW-- Lightweight Hubs

Front hub with Standard 5/8" bearings

1 1/4" Clamping Drive Hub

Heavy Duty Full Circle Drive hub also available

All hubs come with hub bolts



NEW - Lightweight
Standard Taper Bearing Hub

Standard width front hub for steel spindles

Taper bearings take the side load and roll free through the corners.

Wide spacing for better side load on bearings.

The right hub at the right price.

Fiser 6 BOLT Tapered Bearing Hub

This is a narrow hub designed to fit the Fiser spindle but will work on any spindle

You can buy one hub w/bearings and extra hubs without bearings & save money

NEW - Narrow Front Bearing Hub

This is a narrow hub designed to fit the Fiser spindle but it will work on any spindle.

Uses either 1/4" or 5/16" bolts

Uses standard ball bearings

Also available with taper bearings.

6 BOLT SPLINED DRIVE HUBS


Left Rear Ratcheting Hub with drive keys

LEFT REAR BEARING HUBS

DUAL bearing hub has 2 - 1 1/4" bearings stacked together. Uses 3 - 1/4" studs for mounting rims.

Fiser Lightweight hub has 2- 1 1/4" bearings stacked together. 6 bolt design uses 1/4" bolts.

SMOKER Left Rear Ratcheting Hub
Locks up in the corner and unlocks in the straight for better control on some tracks. Uses 3 - 1/4" studs.       Specify 1/4" Key or Splined Key.

Van-K Wheel Tool

New and improved for easy mounting
of your 2 piece wheels.






Part # Description Price Qty
2146  Lightweight Ball Bearing Front Hub - standard width $19.50
2146-T  Lightweight Taper Bearing Hub, standard width $39.50
2146-TB  Boomerang Taper Bearing only  $9.50
2147-HD  Heavy Duty, Full Circle, 1 1/4 inch Drive Hub, clamp on $18.50
2147  Lightweight 1 1/4 inch Drive Hub, clamp on $18.50
2149  Fiser Front Hub, Ball bearing, 6 bolt star design $24.95
2149-B  Fiser Ball Bearing only, each, 5/8 ID, metric OD - 1.400 $5.00
2150-6  Fiser Splined Drive Hub, 6 bolt star design, 1/4 bolts $20.00
2151-SR  Smoker Ratcheting Left Rear Bearing hub - comes with key.
 Specify type of key in comments section at the end of the
 order form.
 Extra keys are available -- $7.50 each. See bottom of table.
$205.00
2151-3  Left Rear Bearing Hub, dual bearing - 3 bolt design $59.50
2151-6  Fiser LR Lightweight Dual bearing hub - 6 bolt design $59.50
2152  Rim bolt Kit, Buttonhead + Flange nuts, 3 of each $1.50
2152-B  Button Head bolt, 1/4-28 x 5/8 $.15
2152-F  1/4-28 Flange nut, non serrated $.20
2153-4  Hub Bolt Kit, 1/4 inch $1.50
2153-5  Hub Bot Kit, 5/16 inch $1.50
2154-O  O ring only,  each $1.50
2154-V  Valve Stem only $1.50
2155-M  Metric wheel bearing, 5/8 ID, 1.378 OD - fits Fiser Hubs $2.50
2155  Standard 5/8 wheel bearings, 1.375 OD $2.50
2156  Ceramic Bearing Kit, 4 - 5/8 brgs + 4 - 1 1/4 brgs - SPECIAL $189.00
2156-5/8  Ceramic Bearing, 5/8, each $17.50
2156-1 1/4  Ceramic Bearing, 1 1/4, each $37.50
2149-T Fiser Taper Bearing Hub w/bearings, narrow, 6 bolt design $65.00
2149-TH Fiser Taper Bearing Hub only $37.50
2149-TB Fiser Taper Bearing only, each $15.00
2146-N Narrow Front Bearing Hub, 3 bolt, standard ball bearings $19.50
2146-TN Narrow Front Bearing Hub, 3 bolt, taper bearings $39.50
2151-K4 1/4 inch key for Ratcheting Hub $7.50
2151-KS Splined key for Ratcheting Hub $7.50

Please enter the quantity in box above and click on "Order Here"


5" & 6" Van K Rim Halves

Part # Description Price Sale Qty
2140-2  2 x 5 Rim Half $12.00 $10.75
2140-2 1/2  2 1/2 x 5 Rim Half $12.50 $11.25
2140-3  3 x 5 Rim Half $13.00 $11.75
2140-3 1/2  3 1/2 x 5 Rim Half $13.50 $12.25
2140-4  4 x 5 Rim Half $14.50 $12.75
2141-2  2 x 6 Rim Half $14.00 $12.25
2141-2 1/2  2 1/2 x 6 Rim Half $14.50 $12.50
2141-3  3 x 6 Rim Half $15.00 $12.75
2141-3 1/2  3 1/2 x 6 Rim Half $15.50 $13.25
2141-4  4 x 6 Rim Half $16.00 $13.75


2142  Van-K  Wheel Tool - for mounting rims $35.00

Please enter the quantity in box above and click on "Order Here"


One Piece Van K Wheels


Part # Description List Sale Qty
2143-5R  5 x 5, 3 inch Inner $39.50 $30.00
2143-5S  5 x 5, 2 1/2 Inner $39.50 $30.00
2144-6D/4  6 x 6, 4 inch Drop Center Inner half $39.50  $30.00
2144-6C/4  NEW - 6 x 6, 4 inch Inner Cone, Machined $45.00 $35.00
2144-8/3  6 x 8, 3 inch Inner $39.50 $32.50
2144-8/4 6 x 8, 4 inch Inner $39.50 $32.50
2144-8 1/2/3 6 x 8 1/2, 3" Inner $39.50 $32.50
2144-8 1/2/3 1/2 6 x 8 1/2, 3 1/2" Inner $39.50 $32.50
2144-8 1/2/4 6 x 8 1/2, 4" Inner $39.50 $32.50
2144-5.5/3 5 x 5 1/2, 3 inch inner $39.50 $30.00
2143-5.5/2.5 5 x 5 1/2, 2 1/2 inch inner $39.50  $30.00
2143-6/2 5 x 6, 2 inch inner $39.50 $30.00
2143-6/2 1/2 5 x 6, 2 1/2 inch inner $39.50 $30.00
2143-6/3 5 x 6, 3 inch inner $39.50 $30.00
2143-6 1/2/3 5 x 6 1/2, 3 inch inner $39.50 $30.00

Please enter the quantity in box above and click on "Order Here"
