Tire Mounting Tool



(NEW Tire Tool is not Powder Coated)

Individual pieces are now available
in case you have lost one of them


To Dismount Tire --

Rotate handle about post
Note how one side of the tire is down in the
center of the wheel

To Mount Tire

The Tire Tool must be firmly mounted
The top hex nut must be tightened so that the mounting shaft
is stable and won't bend.
The clamp collar must be tightened securely
Warm the tire up and use a lubricant - like Windex

Follow these steps to change tires

1. Break the bead using a Bead Breaker.
   The Bead Breaker Tool is listed below.


2. Mount Base of Tire Tool solid on a bench or Trailer Hitch
     (there is a lot of force on the tool when putting the tire on)


3. To Dismount Tire:
   Mount the wheel on the Tire Tool with the narrow side of the rim up.
   Hold one side of the tire down in the middle of the wheel with one hand
   while you use the flattened end of the handle to pry the tire over the rim
   on the opposite side. Rotate handle about center post to remove tire.
   Finish by hand.

4.  To Mount the Tire:
      Put one side of the rim in the new tire by hand with the
     narrow side of the rim up.
     Mount wheel on the Tire Tool and attach the handle as
     shown with the roller riding on the rim.
     Tighten the clamp collar on top of the handle.
     Push one side of the tire down into the middle of the wheel
     and rotate the handle to roll the the other side of the tire on.

5.  Put tire and wheel assembly inside the tire ring and inflate until
     the tire bead is seated.

NOTE: The tire ring is for safety
 and also acts to maintain tire size


• Easily remove tires from wheel rim.

• Pointed ends quickly remove tire

• Teflon blocks below handles put tire on

• Dismount and Mount in one single motion.

Deluxe Tire Bead Breaker





Bead Breaker makes it easy
to get the tires off the rims.

• Works for both 5" and 6" wheels

• Easy adjustment for different width wheels.

• Angled foot slips under the wheel rim.

• Angled handle provides high leverage to break the bead.

• New tool is not powder coated.

• It sells because it works!

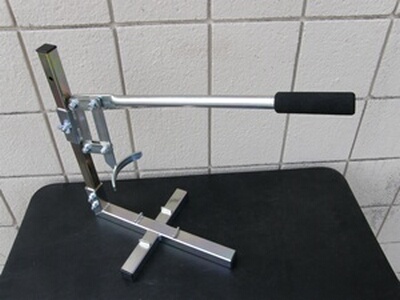

Economy Tire Bead Breaker

• Works for both 5" and 6" wheels

• Adjusts up & down for different width wheels

• Curved ring pushes tire down off rim

          Tire Air Gauge

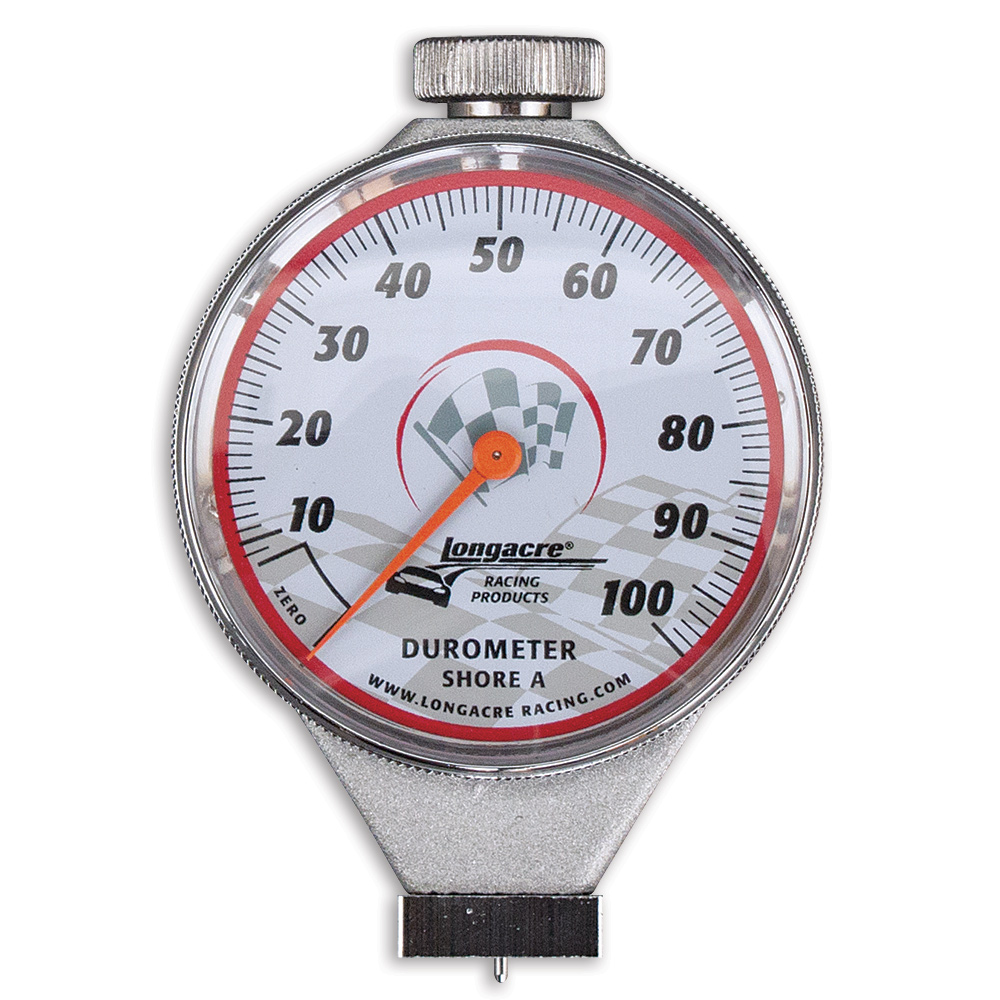

Tire Hardness Gauge


• High quality air gauge with pressure release

• 0 - 30 pounds

• Compare Tire Hardness with Durometer

• Use to inflate tires with safety

• Simple adjustment - fits any tire

• Powder Coated Red

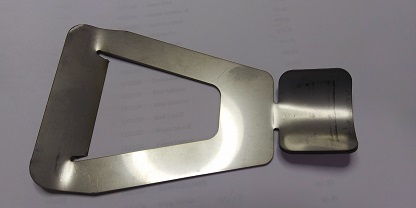

Tire Scraper



• Tire Scraper attaches to heat gun

• Pull Back Design makes it easy to use.

• Precision Cutting Edge machined in a mill.

• Stainless Steel

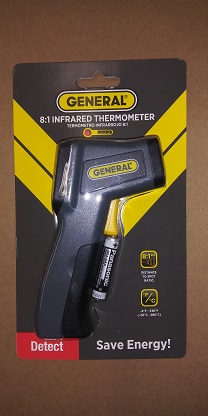

• Check Tire temperatures for even drift in corners

• Check Head temperature for carburetor settings

• Check Track temperature
