Building the Boomerang Quarter Midget

Click on the pictures for a bigger closeup view --


     Frame design -

             Take a close look at our frame and you will see that it is one of the best designed frames out there.

             We have added a cross tube up front and two new cage support tubes directly behind the head rest.

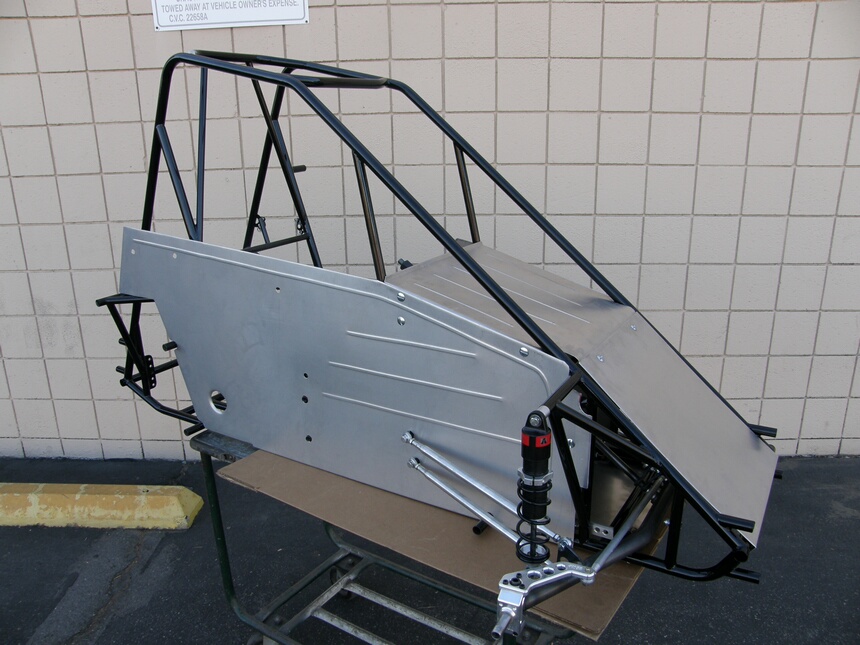

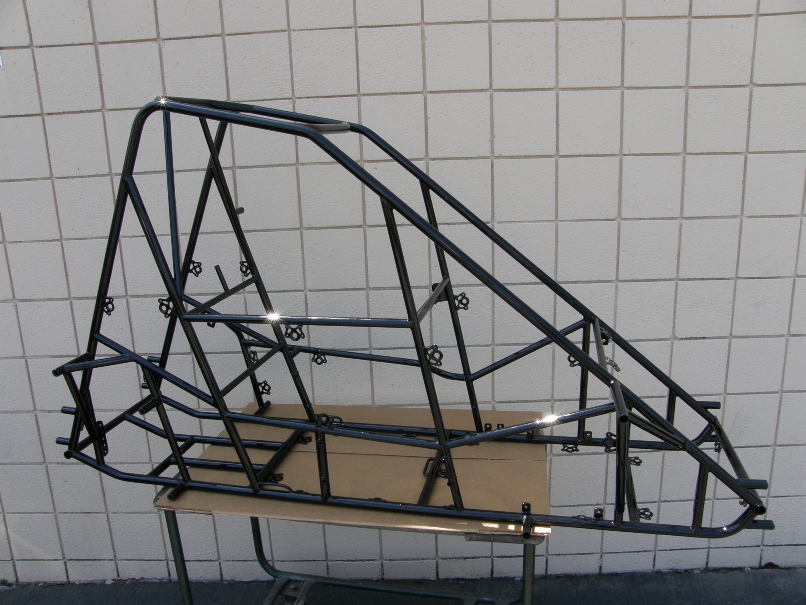

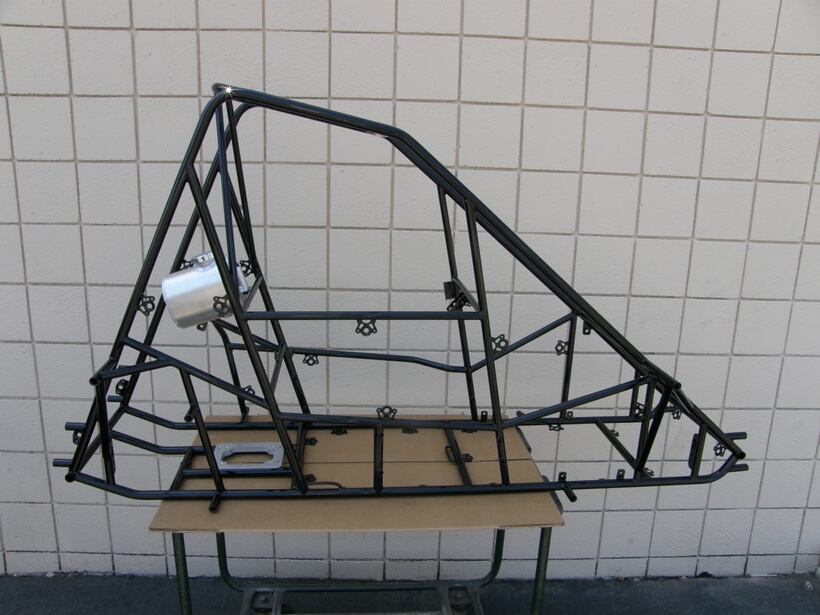

Frame - Right Side view

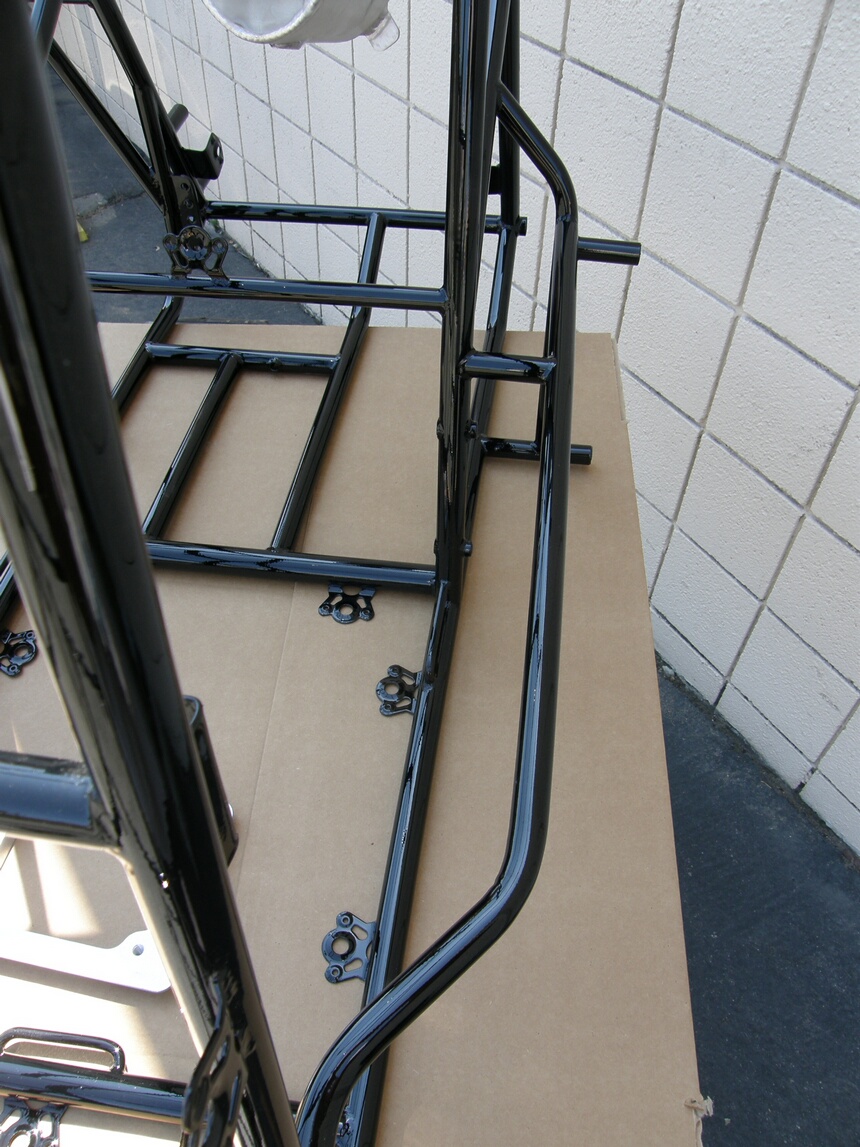

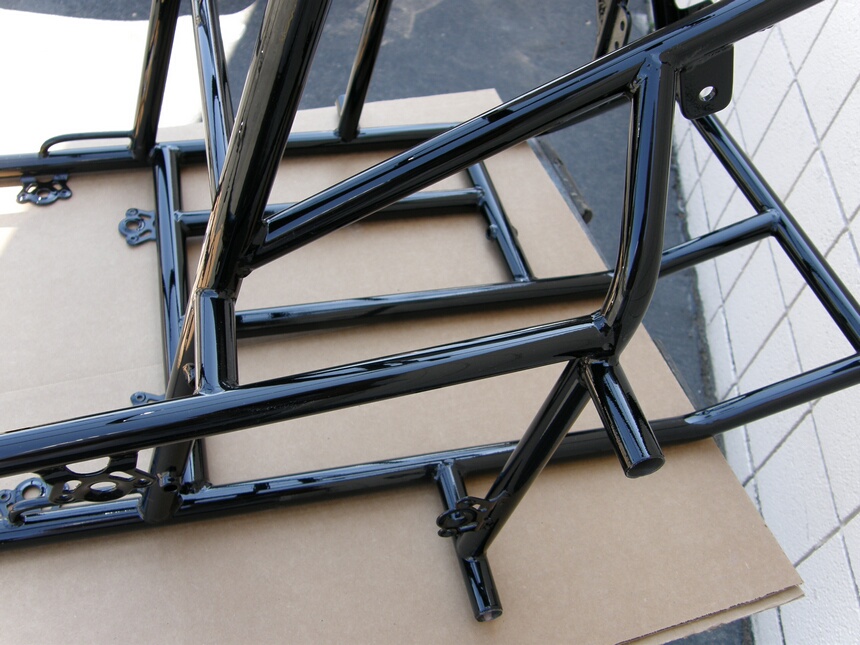

Left Side Layover Tube


Side tube extends to motor area
 for easy access to gears

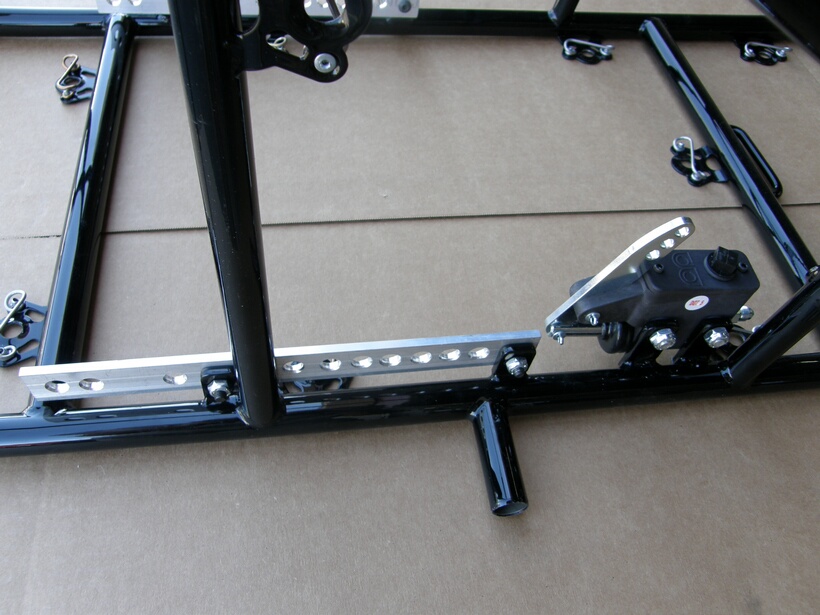

Adjustable Brake Pedal
 mounting bracket & MC

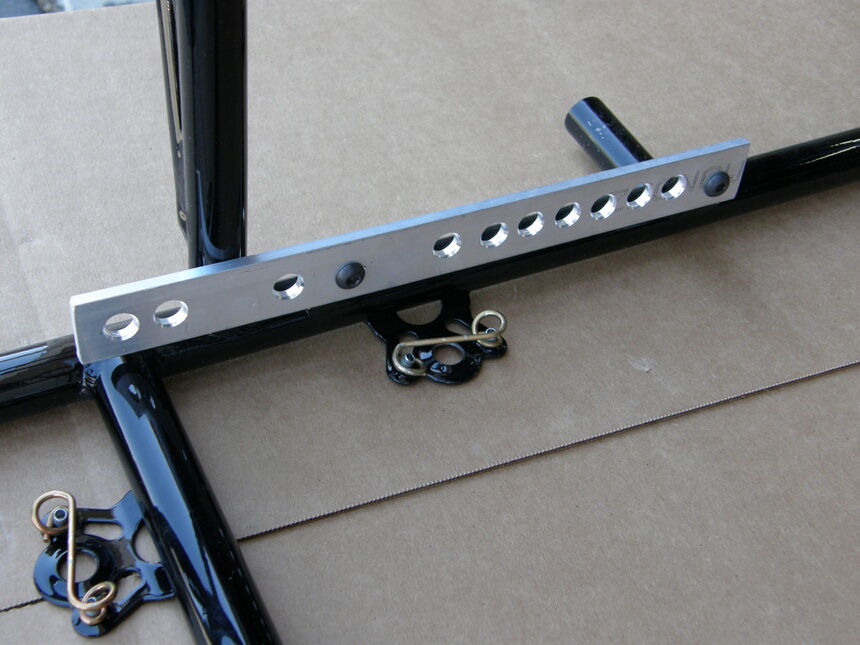

Gas Pedal mounting bracket

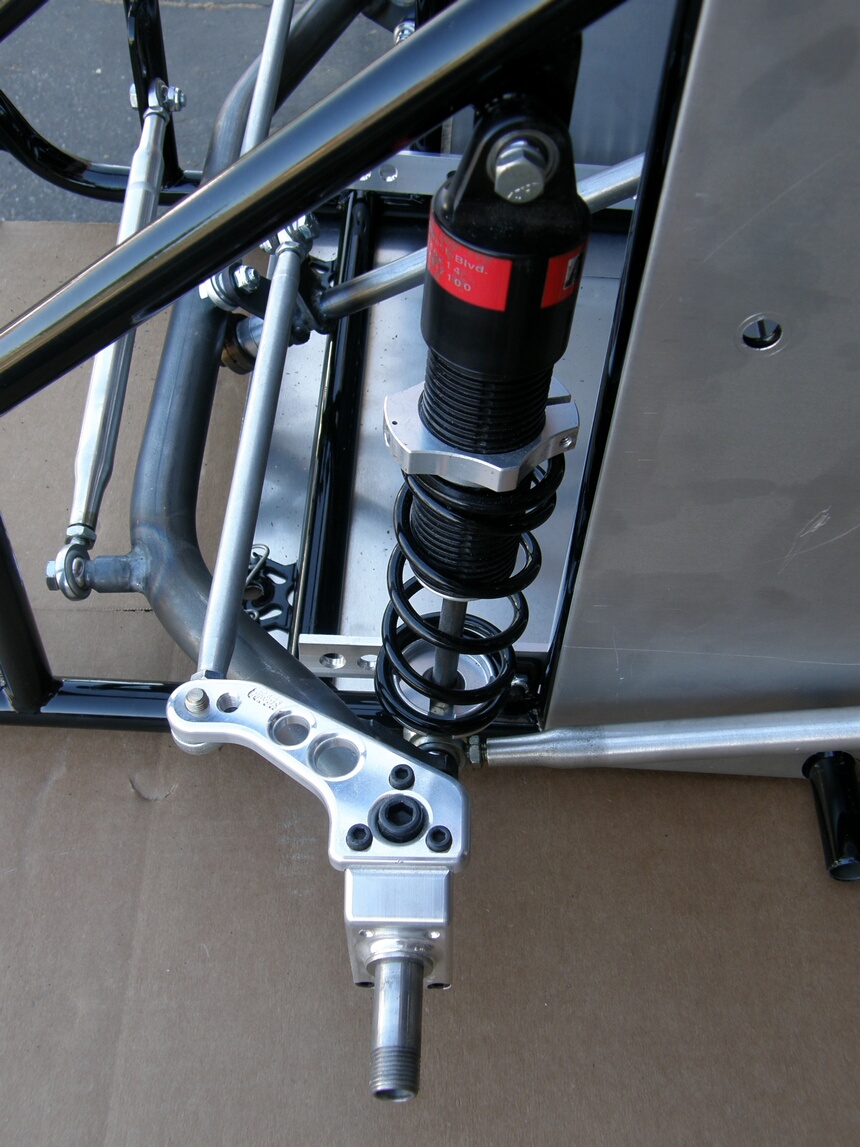

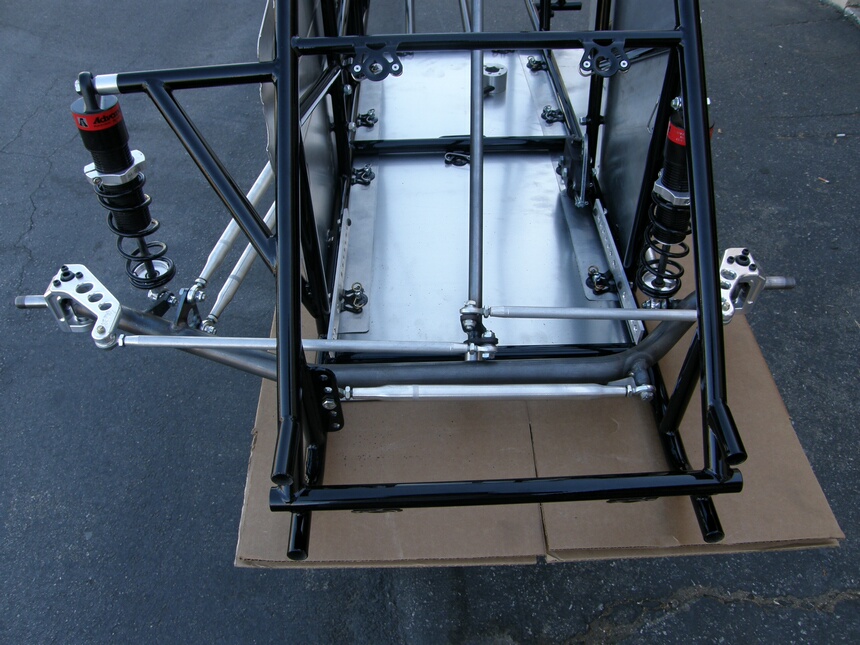

NEW Offset Front Axle installed

ARS Shocks - STANDARD

Car now comes with the Super Axle

Fully adjustable Camber & Caster

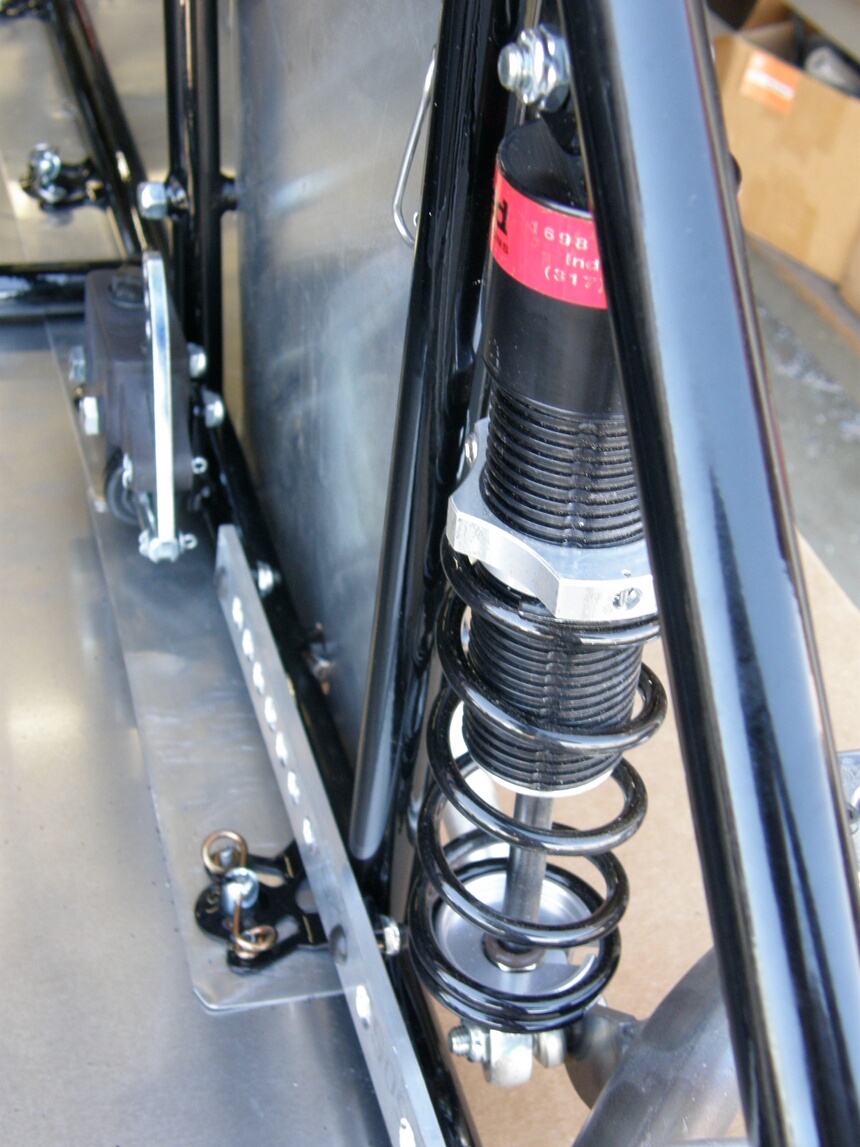

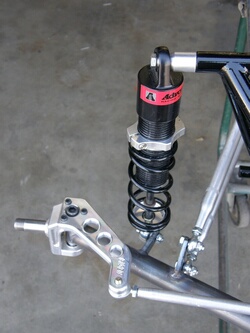

LF Shock mounts slightly inboard


Left Front vertical tube is moved back
to give shock clearance for more offset


   Lightweight Billet Aluminum Bearing Carriers -

        These new carriers are really light and use stacked bearings to eliminate crush problems

       We had a special brake plate made to bolt to the RR carrier to mount the Martin Dual Brake Caliper.

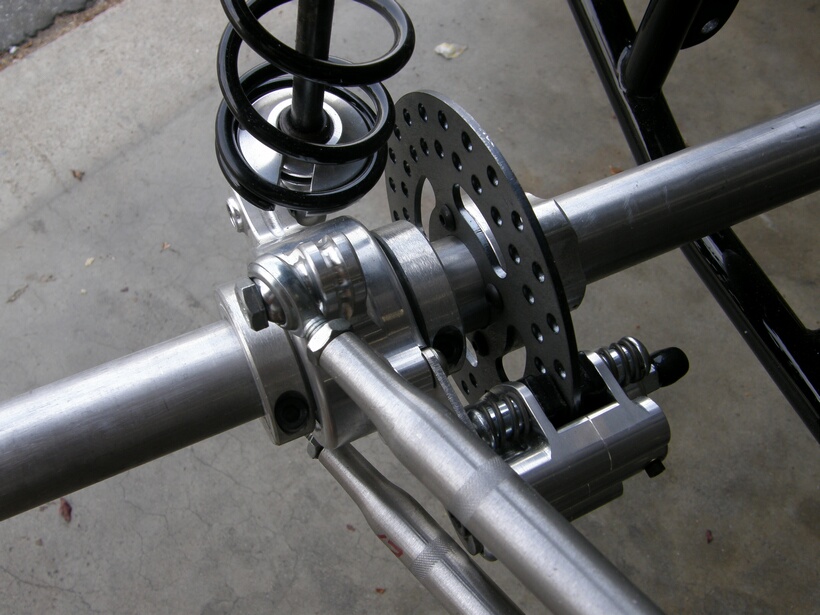

New Billet Bearing Carrier
with Dual Acting Caliper

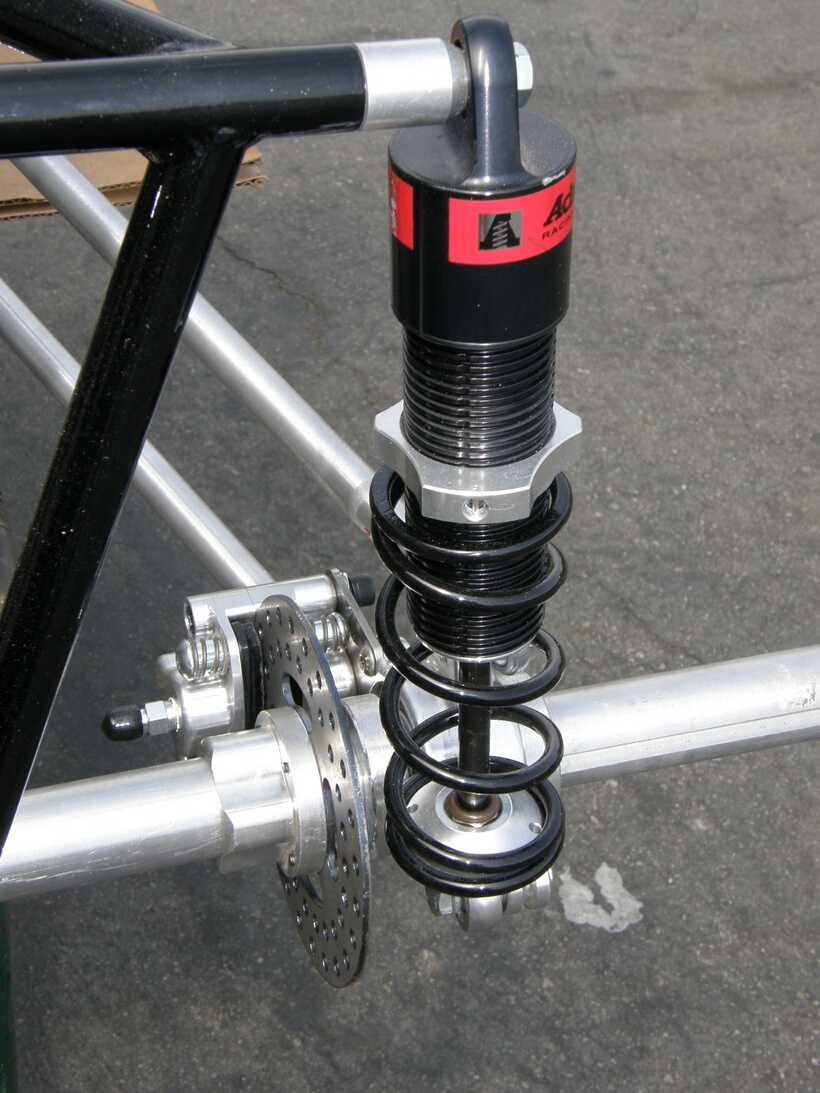

Right Rear Shock Mount

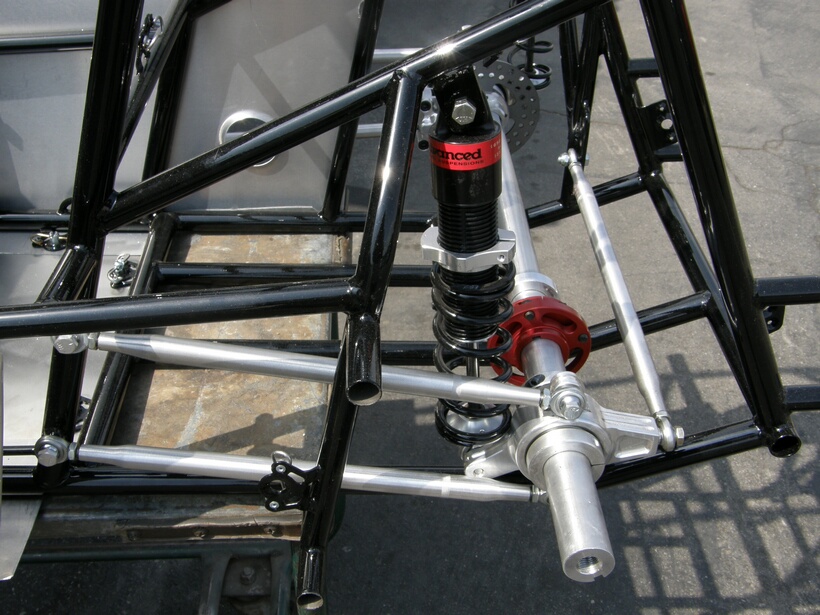

Left Rear Shock Mount &
New Billet Bearing Carrier


   NEW Tail and Firewall -

        We have closed in the front of the tail section and it now fastens to the frame with two Wing Fasteners at the rear.

        The gas tank is still post mounted but it is moved back so that the tail can slip down in front of it

        The firewall extends up only to the cross tube and the upholstery snaps to the firewall.

        The headrest section of the tail is off-set as is the gas tank to accommodate any special carburetors.

Post Mounted Gas Tank

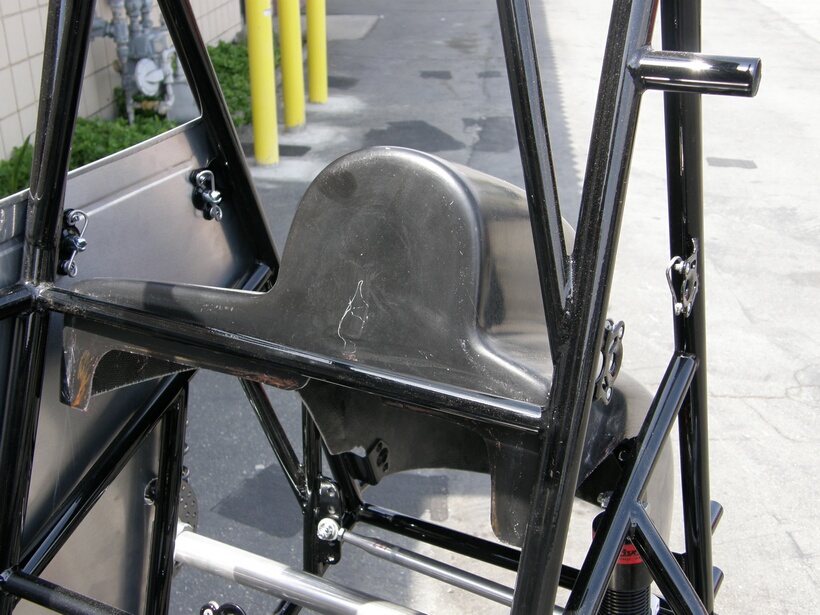

New Tail is closed in on the front

Tail is offset and fastens with
 Dzus on bottom sides

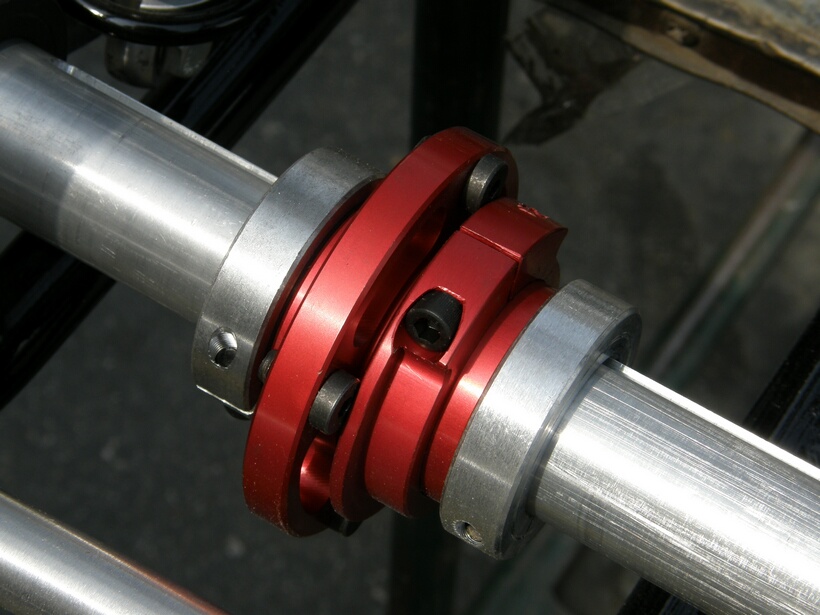

Quick Change Gear Hub is easy
to use with locking collar


NEW - 2 Pc Motor plate is standard
(comes with adjuster bar)

New - Front Nose Panel
