Building the New Boomerang Quarter Midget

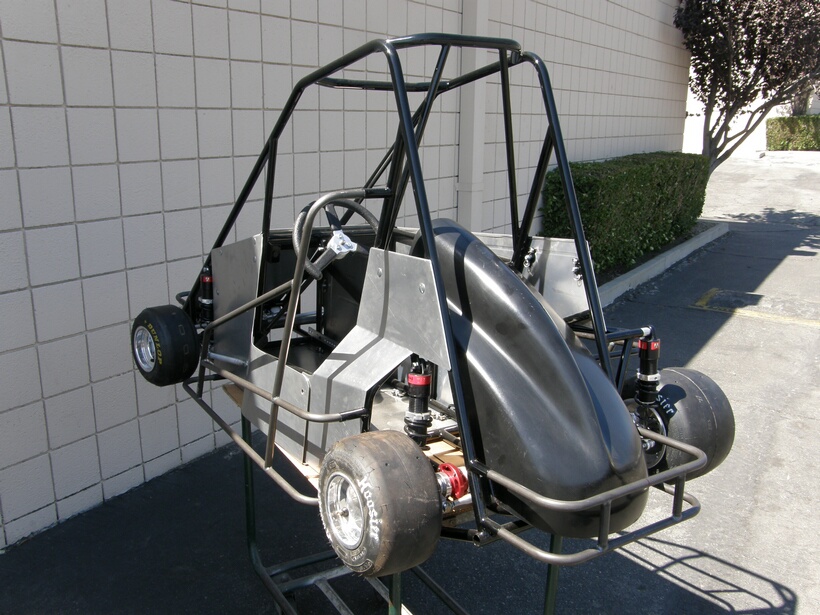

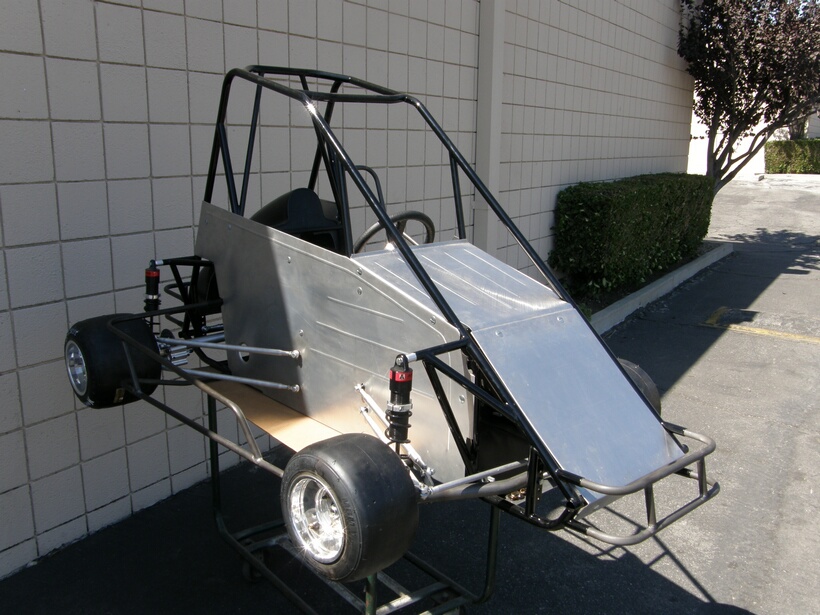

     NEW Frame design -

             Take a close look at our frame and you will see that it is one of the best designed frames out there.

             We have added a cross tube up front and two new cage support tubes directly behind the head rest.

Adjustable Brake Pedal
 mounting bracket & MC

NEW Offset Front Axle installed

         Tanner Vision shocks or AFCO shocks are standard.  ARS shocks are an optional extra.

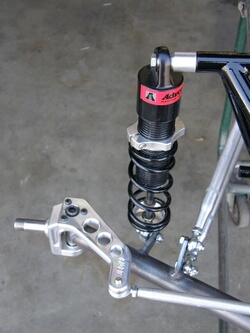

Front axle with billet aluminum adjustable camber spindle


LF Shock mounts slightly inboard


Shows LF vertical tube is moved back to give shock clearance


   NEW Lightweight Billet Aluminum Bearing Carriers -

        These new carriers are really light and use stacked bearings to eliminate crush problems

         We had a special brake plate made to bolt to the RR carrier to mount the Martin Dual Brake Caliper.

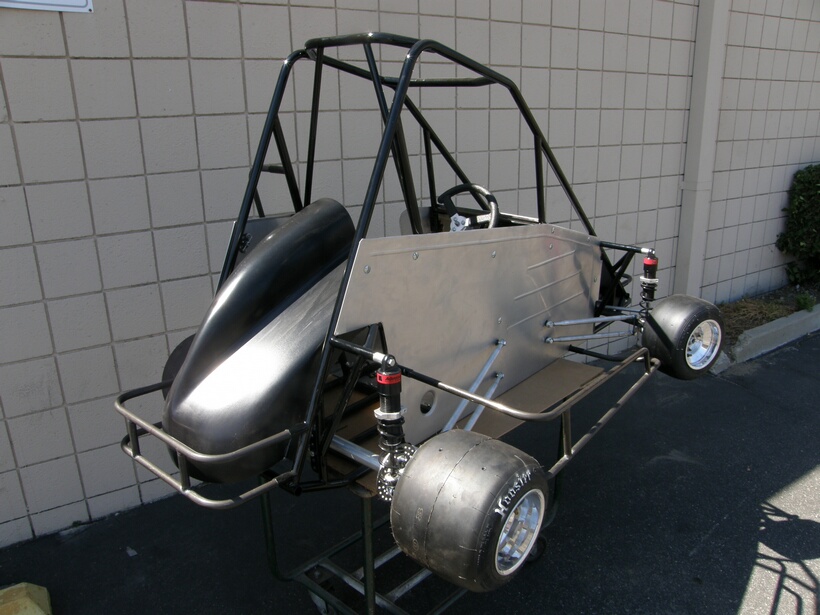

   NEW Tail and Firewall -

        We have closed in the front of the tail section and it now fastens to the frame with two Dzus at the rear.

        The gas tank is still post mounted but it is moved back so that the tail can slip down in front of it

        The firewall extends up only to the cross tube and the upholstery snaps to the firewall.

        The headrest section of the tail is off-set as is the gas tank to accommodate any special carburetors.

New Tail is closed in on the front

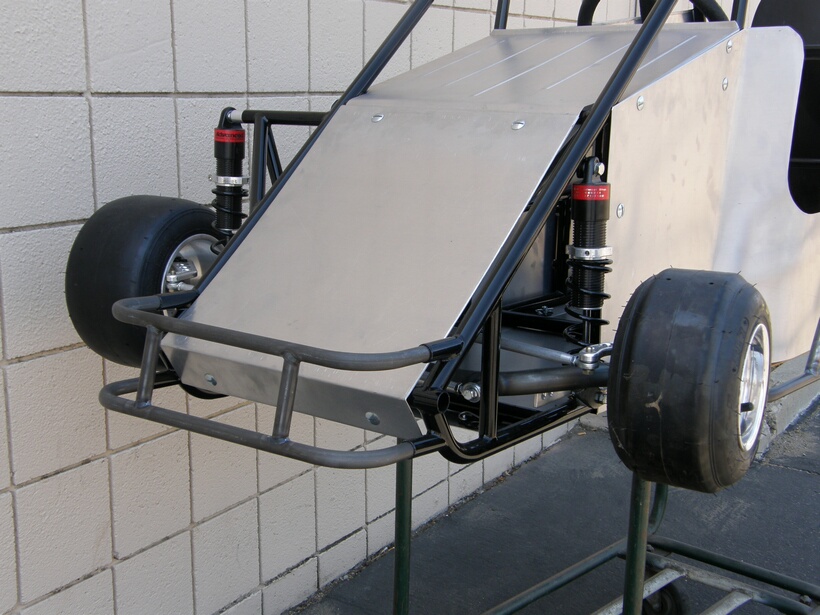

NEW Front Nose panel - shortens the front end and keep it simple.
The front bumper is also shorter
